Industrial Aeration Diffusers
High-efficiency oxygen transfer and mixing solutions engineered for municipal, industrial, and heavy-duty wastewater treatment processes.
Explore Our Aeration Diffusers
We manufacture a comprehensive range of biological carriers designed to support robust biofilm development. Select the optimal profile based on your specific organic loading rate (OLR), tank volume, and mixing energy requirements.
The Mechanics of Oxygen Transfer & Aeration
Aeration is the most energy-intensive process in biological wastewater treatment. Our aeration diffusers are engineered to optimize the mass transfer of oxygen into the water column, supporting the metabolic requirements of aerobic microorganisms while minimizing blower energy consumption.
The efficiency of this process is defined by Standard Oxygen Transfer Efficiency (SOTE) and Headloss. By controlling bubble size, membrane perforation patterns, and material elasticity, our diffusers achieve an optimal balance between high SOTE and low operational pressure requirements.
Diffuser Technologies Overview
Selecting the correct diffuser type is critical based on the specific biological process, tank geometry, and solids concentration.

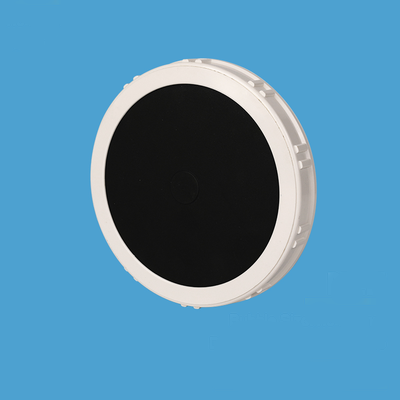

Fine Bubble Diffusers (Disc & Tube): Produce uniform micro-bubbles (1-3 mm in diameter) that maximize the gas-liquid interfacial area. This results in superior SOTE (typically 4%-7% per meter of submergence). Ideal for Conventional Activated Sludge (CAS), Sequencing Batch Reactors (SBR), and integrated Moving Bed Biofilm Reactors (MBBR).

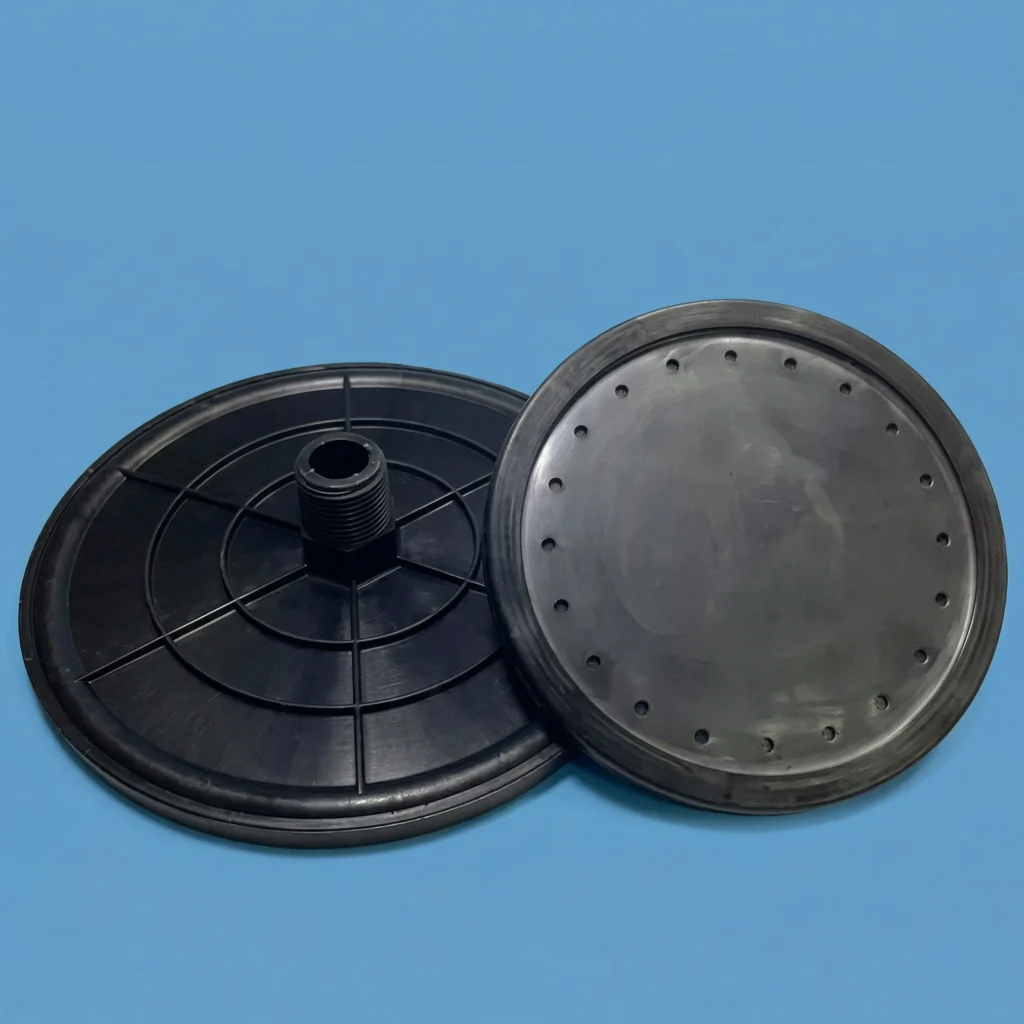

Coarse Bubble Diffusers: Generate larger bubbles (4-50 mm) designed for powerful turbulence and mixing rather than primary oxygen transfer. These feature a high Alpha factor and a non-clogging design, making them essential for heavy-sludge environments, grit chambers, and aerobic digesters.
Material Engineering & Membrane Performance
The durability of an aeration system depends entirely on the chemical and mechanical resistance of the membrane material. We provide specific polymer formulations to match your wastewater characteristics:
Premium EPDM Membranes: Manufactured via compression molding with strict plasticizer extraction control. This prevents membrane hardening and shrinkage over time, ensuring a stable dynamic wet pressure and a low creep rate. Standard choice for municipal wastewater.
Silicone & PTFE-Coated Membranes: Engineered for harsh industrial effluents containing high temperatures, solvents, hydrocarbons, or greases. These materials offer exceptional anti-fouling resistance and chemical inertness.
Structural Components: Diffuser bases, saddles, and retaining rings are constructed from glass-fiber reinforced Polypropylene (PP) or 304/316L Stainless Steel to withstand long-term mechanical stress and pipe vibration.
Industrial Applications & Integrated Solutions
Our aeration systems are deployed across diverse sectors. We provide targeted grid designs and piping layout support for the following applications:
Aeration Tank Upgrades & Retrofits: Replace aging, high-headloss diffusers with our highly efficient membrane systems to reduce blower energy costs. Learn more about our Municipal Aeration Upgrade Solutions.
MBBR & IFAS System Synergy: Fine bubble tube diffusers are perfectly suited for providing both the oxygen demand and the hydraulic mixing energy required for MBBR carrier fluidization. Explore our Integrated MBBR Treatment Solutions.
Pulp & Paper / Food Processing: Manage high-temperature and chemically aggressive wastewater with our specialized silicone membrane diffusers. See our High-Strength Industrial Wastewater Solutions.
Sludge Digestion & Holding Tanks: Prevent solids settling and maintain aerobic conditions with our high-shear stainless steel coarse diffusers. View our Sludge Mixing & Digestion Solutions.
